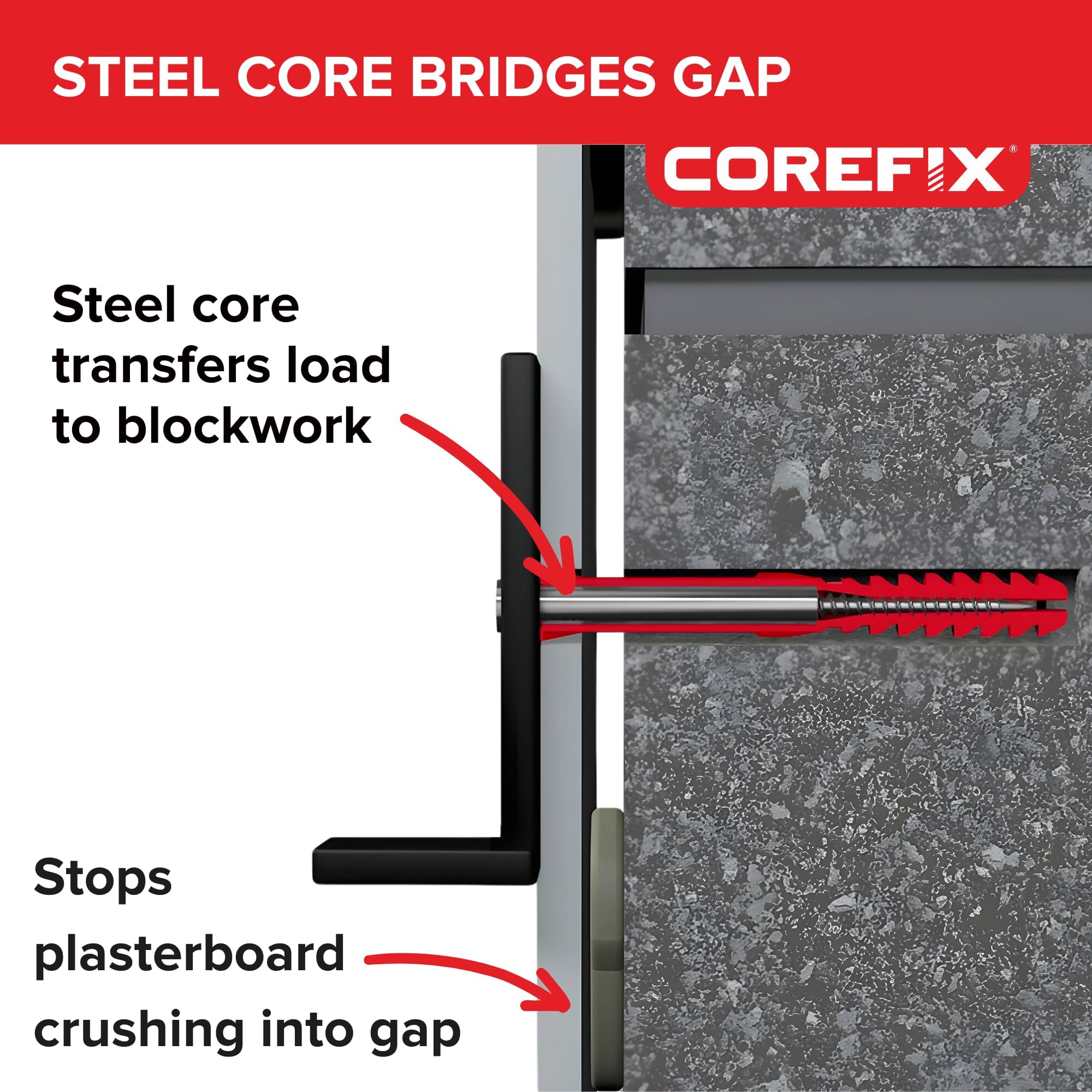

DOT & DAB DRYWALL ANCHORS SOLVED "Dot & Dab" is a common modern wall type, where drywall covers masonry with a gap between them. Corefix Connect's STEEL CORE bridges the gap and transfers the load straight to the blockwork, so you can mount heavy items like TVs and radiators securely without the drywall crushing into the gap. DESIGNED FOR DRYLINED WALLS Corefix Connect is specifically designed for drywall attached over masonry (Dot & Dab), and transfers the load to the blockwork for a secure hold. REINFORCED WITH A STEEL CORE 121lb Safe Working Load/anchor. The steel core bridges the gap between drywall and solid masonry, and stops the drywall from crushing. SIMPLE NO-FUSS INSTALLATION Corefix Connect only needs a drill, hammer and screwdriver to install - no special tools needed! INDEPENDENTLY TESTED Made in Britain, Corefix Connect anchors have been tested by an independent UKAS accredited laboratory to ensure a safe and secure hold. Corefix Connect 120mm 4pk Add to Cart Corefix Connect 100mm 4pk Add to Cart Corefix Connect TV Kit Add to Cart Corefix Connect 100mm x24 Add to Cart Corefix Connect 120mm x24 Buying Options Customer Reviews 4.6 out of 5 stars 585 — 4.6 out of 5 stars 737 4.8 out of 5 stars 1,207 — Price $10.99$10.99 $10.99$10.99 $12.35$12.35 $28.60$28.60 — Number of anchors 4 4 6 24 24 Screw length 120mm 100mm 100mm 100mm 120mm Fixture/bracket thickness 10-30mm up to 10mm up to 10mm up to 10mm 10-30mm Suitable for dense brick/block ✔ ✔ ✔ ✔ ✔ Suitable for aerated block ✔ ✔ ✔ ✔ ✔ Reinforcement Steel core Steel core Steel core Steel core Steel core Safe working load (1 anchor) 121lb 121lb 121lb 121lb 121lb Accessories included n/a n/a 10mm masonry drill bit n/a n/a Best for Deep fixtures (timber battens) Metal brackets Metal brackets Metal brackets Deep fixtures (timber battens) Drill diameter required 10mm / 3/8" 10mm / 3/8" 10mm drill bit included 10mm / 3/8" 10mm / 3/8" Technical Specifications Drill diameter 10mm / 3/8" Screw diameter 5mm Anchor length 95mm Screw length (Connect 100mm) 100mm Screw Length (Connect 120mm) 120mm Min. hole drill depth 120mm/4 3/4" Max. bracket (Connect 100mm) up to 10mm Max. bracket (Connect 120mm) 10mm-30mm Min. distance from block edge 65mm (concrete) Min. distance between anchors 25mm Max. gap Max. 45mm distance from outer face of drywall to blockwork Screw material Zinc plated steel Anchor material Impact resistant PP copolymer Safe working load 121lb (concrete), 88lb (aerated concrete)
STEEL CORE FOR HEAVY DUTY USE Patented design allows for heavy-duty use, these drywall wall anchors include a steel core for reinforcement to provide a firm, reliable hold. This pack of 4 wall anchors can securely withstand up to 220lbs of weight. The steel core transfers load to the solid wall behind drywall and prevents the crushing of drywall.
EASY TO INSTALL These wall fixings have a simple and easy-to-use 6 step design for your convenience. All you need to install these drywall screws is a screwdriver, hammer and drill, providing a no-fuss set-up. Drill your hole to required 4.72 inch depth using 0.39 inch masonry drill bit. Carefully blow dust and debris out of hole. Gently tap anchor into hole, then gently tap core into anchor. Then simply screw fixture to wall with our corefix screw.
OFFERS A SECURE FIX This kit was specifically designed for drywall over blockwork walls. Each wall anchor has enough depth to fill the gap between drywall and wall to transfer the load to the brick wall behind for a safe and secure hold. Suitable over all types of brick, solid stone and blockwork, including aerated/lightweight blocks. Perfect for hanging heavy items including shelves, cabinets, boilers, radiators, AV equipment and wall mounted TVs. Maximum distance between the blockwork and the outer surface of the drywall for the fixing to work is 1.77 inches.

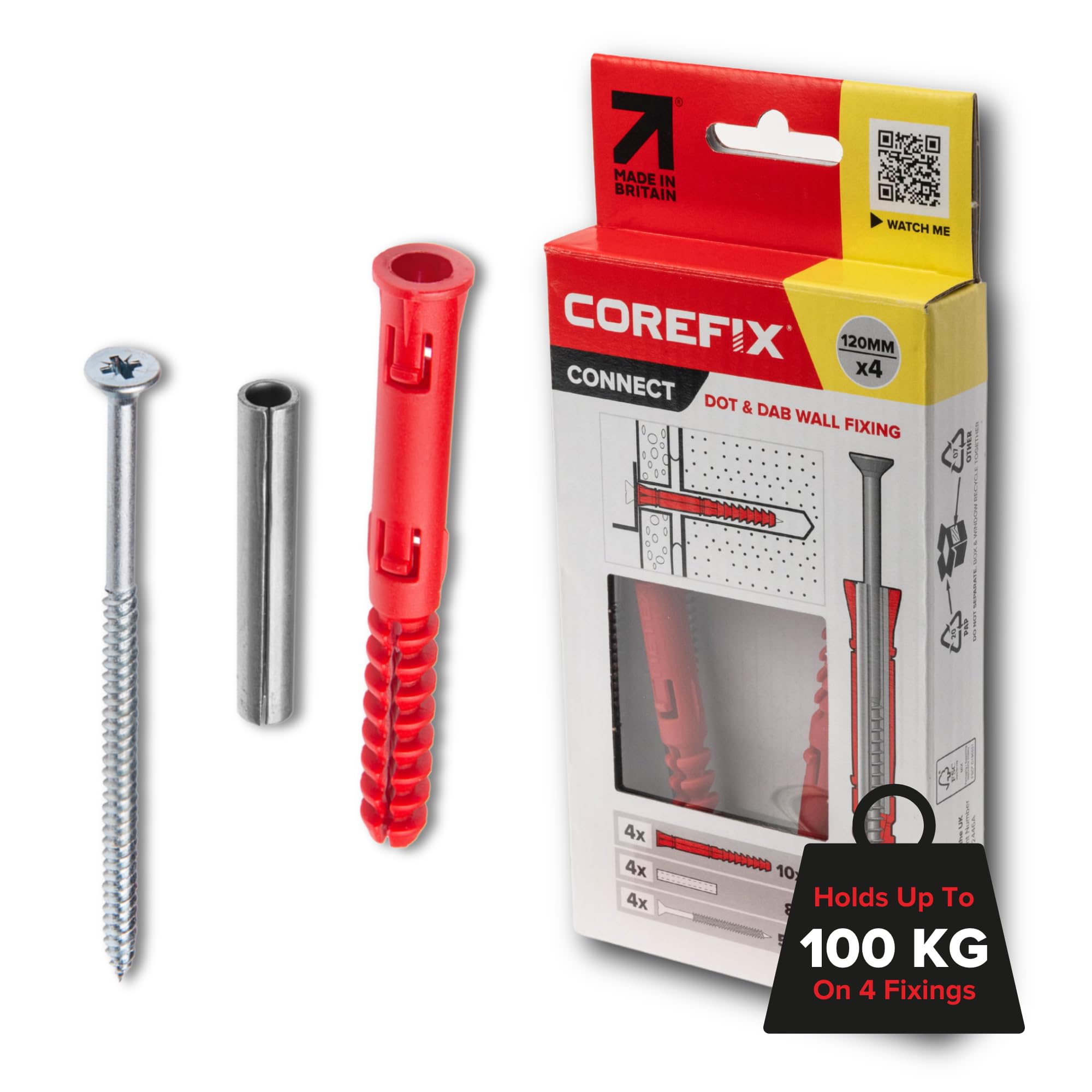

INSIDE THE PACK This pack contains everything you need to mount wall fixtures or brackets to dot and dab drywall for heavy items (up to 200lbs). 4 x 3.74 inch plastic plug length, 4 x 1.7 inch reinforced steel core and 4 x 4.72 inch steel screw (zinc plated for corrosion resistance).
COREFIX Our fixings demonstrate Technical Excellence with a ‘fixing for every application’. The Corefix range offers an unrivalled range of drywall fixings, dot & dab wall fixings and universal wall anchors.
